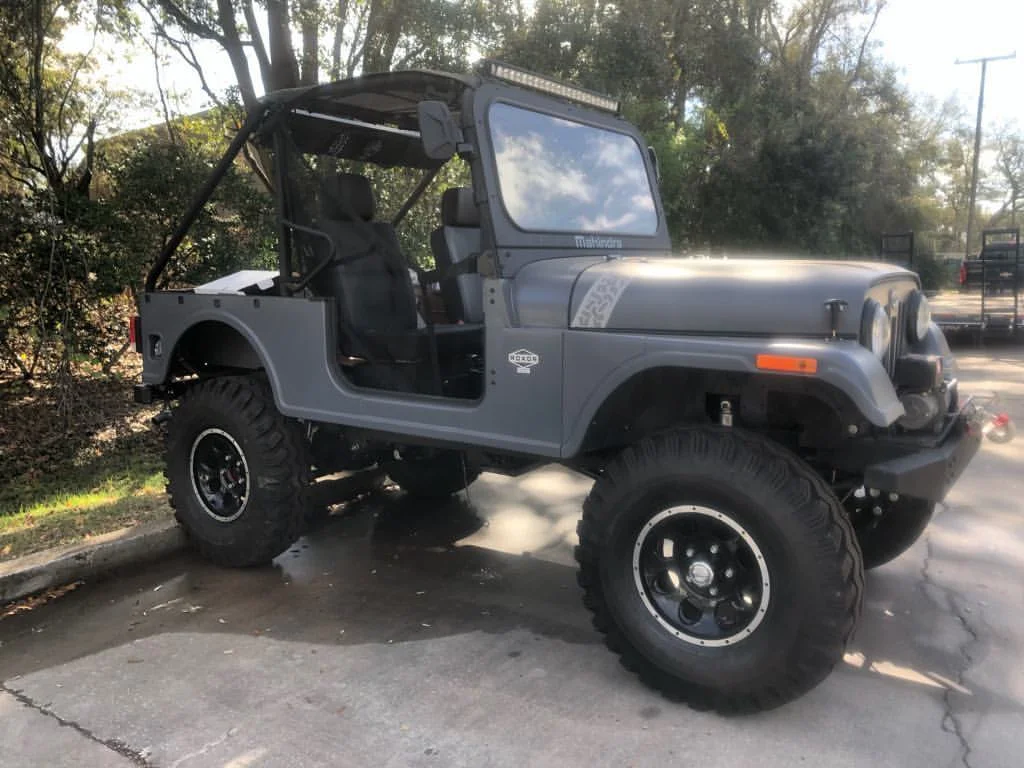

Roxor Performance Leaf Spring 3" Lift Kit

Dirt Legal RX performance lift.png
Dirt Legal RX performance lift.png

Roxor Performance Leaf Spring 3" Lift Kit

from 1,699.00

Fits: 2018-2019 Model Roxor

PARTS WILL SHIP IN 3-4 WEEKS

Additional info below

Shocks:
Quantity:
Add To Cart

The factory ride is very stiff and does not provide much clearance for larger tires. To maximize the offroad capability of the Roxor, we need clearance for 33″-35″ tires.  The custom Leaf springs in our kit provide 3″ of lift in the front and 2″ lift in the rear.  Not only does this setup level the truck but it significantly improves the ride with thinner leaves and softer spring rate. These springs are a direct Bolt-On and do not require any hardware changes.  The Kit includes braided stainless extended length Brake lines and direct fit extended length sway bar end links. This kit maximizes ride and tire clearance without causing driveline angle issues.

We have spec’ed out the proper Bilstein 5100 shocks which are perfectly matched to this suspension system to provide optimum ride and offroad performance. With this lift kit and a set of our custom 2.5″ billet wheel spacers you can run a set of standard offset 5×5.5 lug pattern aftermarket wheels and up to a 35″ tire depending on width.

*Note the front bumper will interfere with the tires at full turning angle, so check out our custom front bumper for maximum clearance and approach angle
